INCH-POUND
MIL-DTL-28875/12A
24 August 2000
SUPERSEDING
MIL-A-28875/12
27 July 1983
DETAIL SPECIFICATION SHEET
AMPLIFIERS, RADIO-FREQUENCY AND MICROWAVE, SOLID-STATE,
W IDEBAND, LOW PROFILE, TO CONFIGURATION
This specification is approved for use by all Depart-
ments and Agencies of the Department of Defense.
The requirements for acquiring the amplifiers described herein shall
consist of this specification sheet and the latest revision of MIL-DTL-28875.
Inches
Millimeters
Max
Min
Max
Min
A
.207
.197
5.26
5.00
B
---
.17
---
4.3
C
.555
.545
14.10
13.84
D
.610
.590
15.49
14.99
E
---
.17
---
4.3
F
.210
.190
5.33
4.83
G
.410
.390
10.41
9.91
H
.031
---
0.79
---
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Unless otherwise specified, tolerance is ±.005.

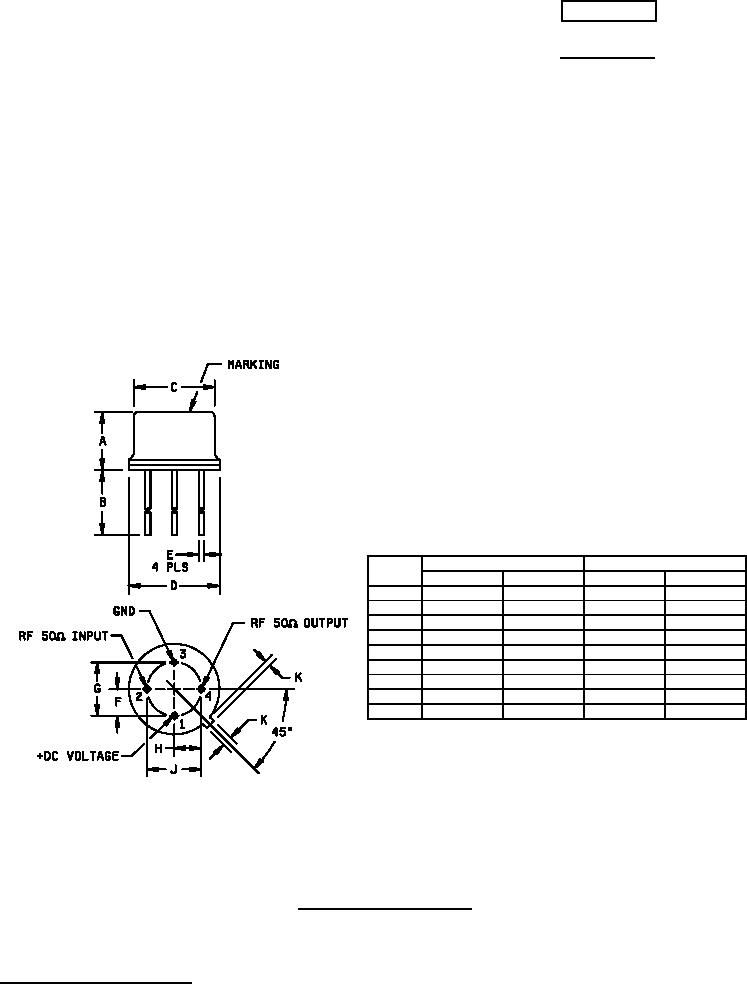

FIGURE 1. Dimensions and configuration.
AMSC N/A
1 of 3
FSC 5985
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
