INCH-POUND
MIL-DTL-28875/8B
15 June 2010
SUPERSEDING
MIL-DTL-28875/8A
24 August 2000
DETAIL SPECIFICATION SHEET
AMPLIFIERS, RADIO-FREQUENCY AND MICROWAVE, SOLID-STATE,
POWER, WIDEBAND, TO CONFIGURATION
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the amplifiers described herein
shall consist of this specification sheet and MIL-DTL-28875.
Inches
Millimeters
Max
Min
Max
Min
B
N/A
.17
N/A
4.32
C
.455
.445
11.56
11.30
D
.510
.490
12.95
12.45
E
.019
.016
.48
.41
F
.160
.140
4.06
3.56
G
.310
.290
7.87
7.37
H
.160
.140
4.06
3.56
J
.310
.290
7.87
7.37
K
.05
N/A
1.3
N/A
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).

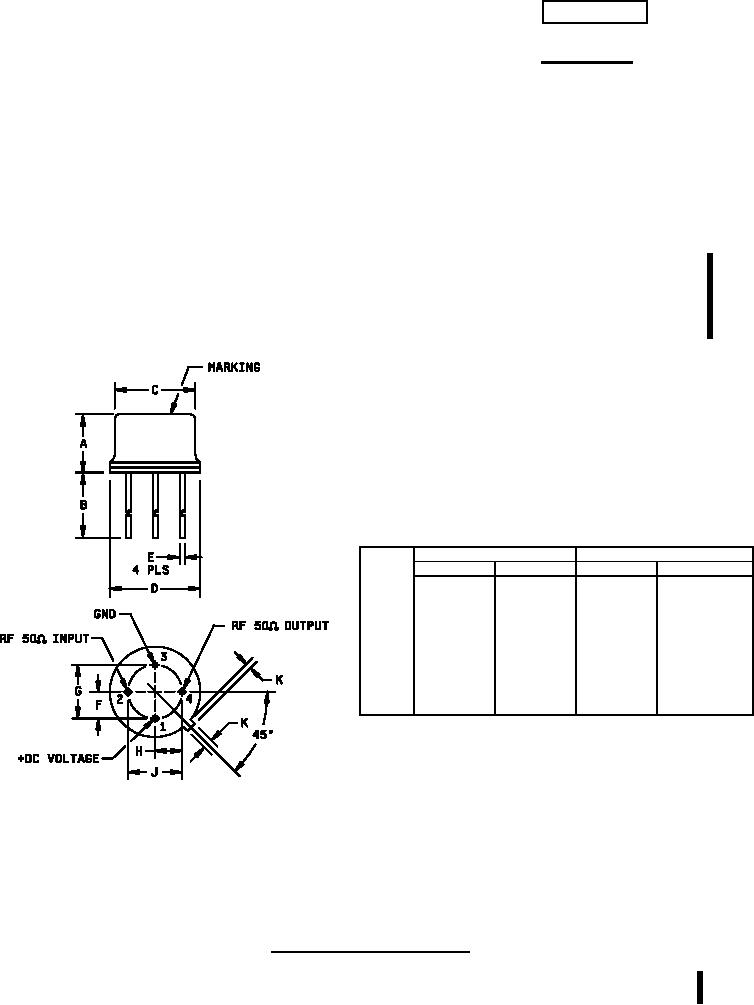

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5996
