MIL-DTL-28875/6B
Inches
Millimeters
Max
Min
Max
Min
A
.10
.08
2.5
2.0
B
1.126
1.106
28.60
28.09
C
.57
-
14.5
-
D
1.126
1.106
28.60
28.09
E
1.32
1.28
33.5
32.5
F
.78
.76
19.8
19.3
G
.10
.08
2.5
2.0
H
1.32
1.28
33.5
32.5
J
.29
.27
7.4
6.9
K
.40 typ
-
10.2 typ
-
L
.63 typ
-
16.0 typ
-
M
.127 dia
.123 dia
3.23 dia
3.12 dia
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only (1.00 inch = 25.4 mm).
3. Barrel diameter shall accept two turns of AWG No. 24 wire.

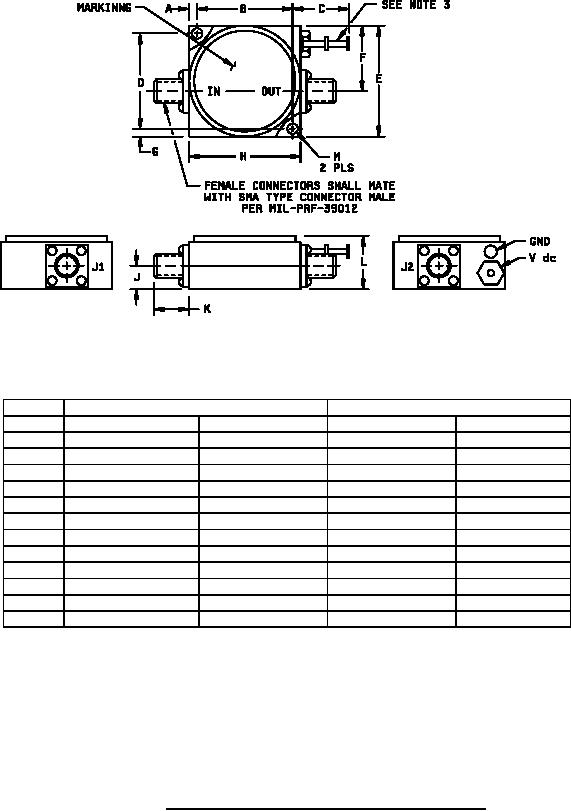

FIGURE 5. Dimensions and configuration, dash number -06.
